SLIT LAMPS

Our Slit Lamps are precession engineered and provide accurate performance.

Click Here : for our other OPHTHALMIC INSTRUMENTS

e-mail : optolabzone@rediffmail.com

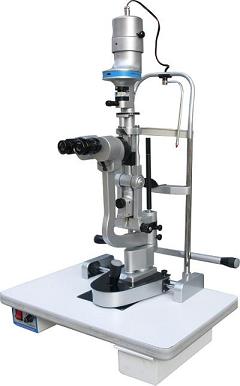

SLIT LAMP : SL-99
INTRODUCTION

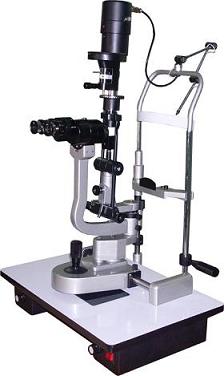

SLIT LAMP : SL-100

The Slit Lamp allows the orthoptist, through the use of a binocular microscope, to see a magnification of the front structure of the eye.

This might be done for a patient with abnormalities of eyelids, CONJUNCTIVA, CORNEA, IRIS and LENS. These abnormalities may be infections, FOREIGN BODIES or CATARACTS.

In other words, this is an instruments, used in the treatment of eye diseases like cataract, myopia and other.



BINOCULAR MICROSCOPE



Eye Pieces : 10x, 15x

Objective : 1x, 1.6x
Total Magnification : 10x, 16x and 24x

Diameter of Visual Field : 18mm, 14.5mm, 9mm


ILLUMINATION



Slit Projection Magnification : 2/3x

Slit Width : Continuous from 10mm to 0mm (at 10mm slit becomes a circle)

Slit Length : Continuous from 10mm to 1mm Or Aperture settings at 9,8,5,3,2,1 and 0.2mm dia.

Slit Angle : 0deg. to 180deg. with horizontal Scanning capability

Slit Inclination : 0, 5deg., 10deg., 15deg. and 20deg. steps.

Filters : Blue, Red Free, ND, Heat-Absorbing No Filter

Lamp : 6V, 20W Halogen Lamp



CHIN REST





Vertical Movement : 82mm

Fixation Target : Luminous Target

Red LED



SLIT LAMP BASE

BASE

Longitudinal Movement : 95mm

Lateral Movement : 105mm

Fine Base Movement : 15mm (with joystick)

Vertical Movement : 32mm

POWER

Input (primary) : AC 220V / 110V

Frequency : 50/60Hz

Output (secondary) : Main Bulb 2.4v, 6.0v for Brightness levels

Power Consumption : 26V A

DIMENSIONS & WEIGHT

Table Model : 560 x 407mm

Unit Model : 375 x 335mm

Weight : 21kg



  STANDARD ACCESSORIES
 Dust Cover, Replacing Lamp for illumination unit
OPTIONAL ACCESSORY
OPTIONAL ACCESSORY
APPLANATION TONOMETER

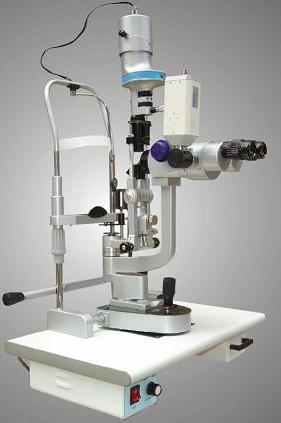

Slit Lamp with Camera
MOTORIZED INSTRUMENT TABLE

Applanation Tonometer is produced for those who wish the Tonometer to remain permanently on the slit lamp. It is mounted on a pivot on the microscope and for examination is swung forward in front of the microscope. The Applanation surface is to be examined in a monocular manner through the left ocular.

This well designed, economical Motorised Equipment Table top for any kind of ophthalmic instruments.
The Standard foot switch can be conveniently positioned for ease of elevation.
Sealed motorized system for smooth, quiet and reliable up-down movement.
Strong foundation base with for four castors for smooth, safe and stable movement.
Our OBJECTIVE and PRIORITY
Buyers requirement and satisfaction, by providing the best quality INSTRUMENTS at very reasonable prices, which helps to sustain its Excellency throughout the world.
